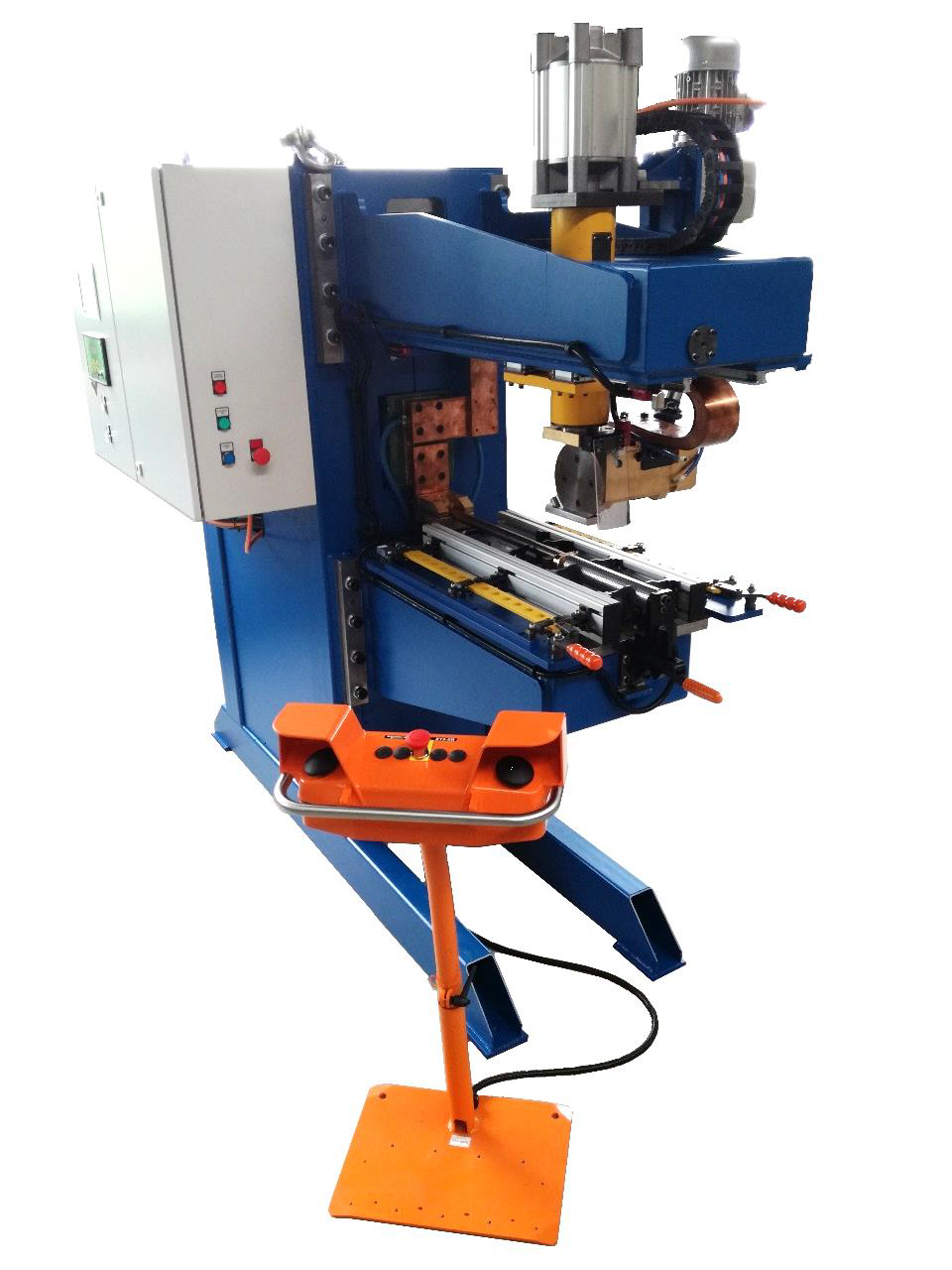

The device for longitudinal welding of cylindrical, conical and elliptical products has the possibility of two modes of operation - pulse and continuous. The welding force is set with a proportional valve, the welded joint is overlapping.
Characteristics:
Technical data:
Welding process | Resistance seam welding |
Welding length [mm] | up to 1000 |
Material thickness [mm] | 0.4…1.2 |
Minimum welding workpiece diameter [mm] | 30 |
Maximum welding workpiece diameter [mm] | 250 |
Maximum welding force [N] | 7800 |
Welding speed [m/min] | 0.5 – 5.0 |
