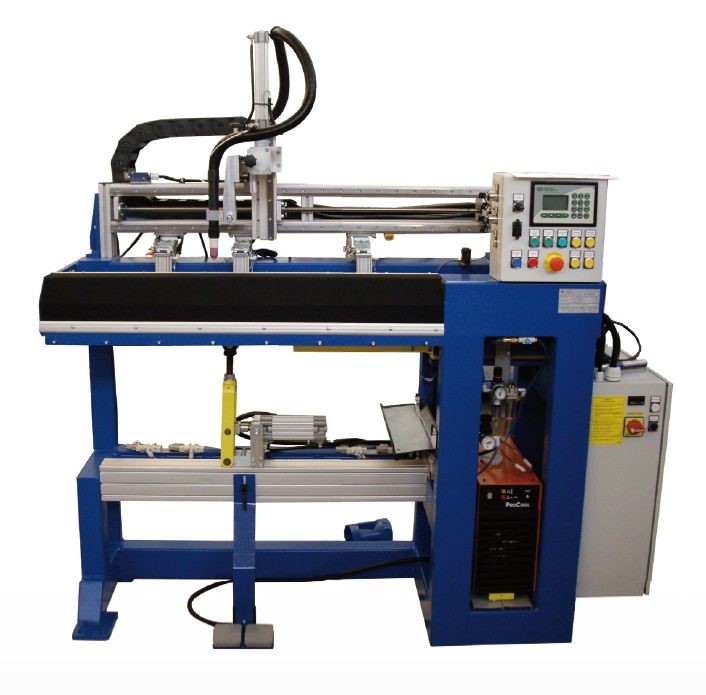

Longitudinal seam welding device
Device for longitudinal welding of various types of products, where quick-change, water-cooled mandrels are used.
Characteristics:
- Quick-change mandrels for different types of products
- Water cooling of interchangeable mandrels
- Shielding gas blowing
- Pneumatic clamping (four clamping jaws, two on each side)
- Longitudinal feed with servo motor
- Digital setting of start and end parameters
Technical data:
| Welding process | TIG without or by adding wire |
| Welding length [mm] | up to 2000 |
| Material thickness [mm] | 0,4…2 |
| Burner movement | Servo drive, linear |
| Burner feed rate [mm/s] | 1 - 30 |
| Burner positioning repeatability [mm] | ±0.1 |
